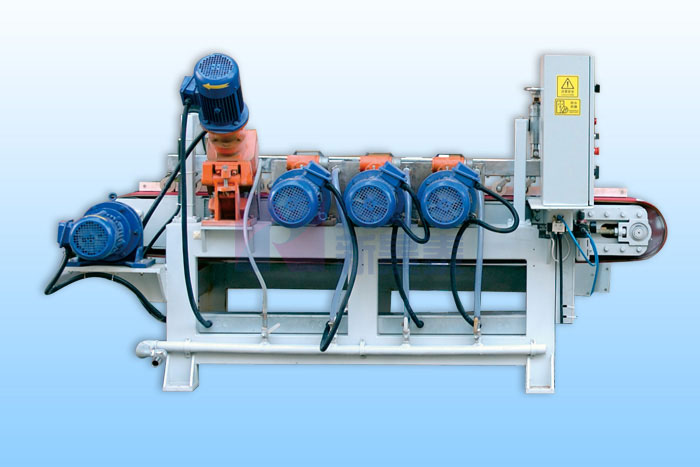

Single Squaring and Chamfering Machine
Font size:SMB

■ Function

 ※ It allows the application of squaring and chamfering wall tile, floor tile, polishing tile, stones and composite board etc.

■ Technical Feature

 ※ It is suitable for different tile size, especially for middle and small size application, with high precision.

 ※ Thanks to the advanced structure and squaring wheel, make it run more stable with hardly trouble, it is easy to replace the squaring wheel.

■ Application

 ※ Floor tile, porcelain tile, stone etc.

■ Model and technical parameter, 3 Heads:

Model Tile Size Water Consumption Overall Dimension(L×W×H) Weight Motor for Squaring Motor for Chamfering Total Power
MBD-630D 80×200~630×630mm 20~30L/min 2650×1600×1400mm 1600KG 3KW 1.5KW 11.6KW


NO.026A (3+1)


NO.026B (4+1)

Updated:2018-01-10 | Return
