Rustic Tile Equipment

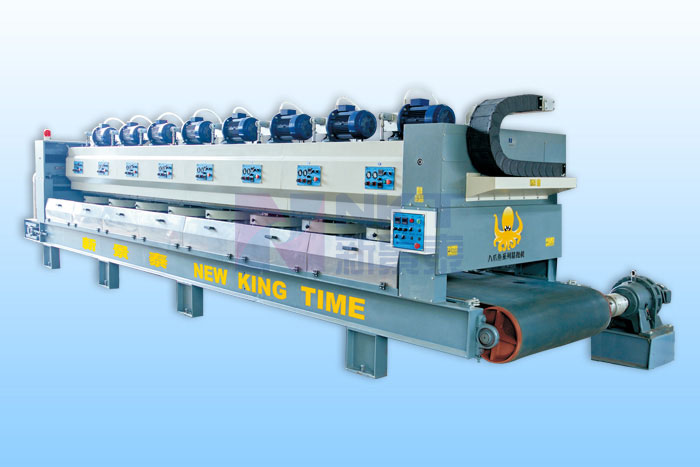

■ Semi-polishing machine is a new kind of ceramic deep processing equipment which designed following absolutely innovating and meeting the requirements of markets. It was adopted advanced driving system, it has features of save energy, high polishing efficiency, drive stable and large output (over 5000m2/day). It allows the application of:

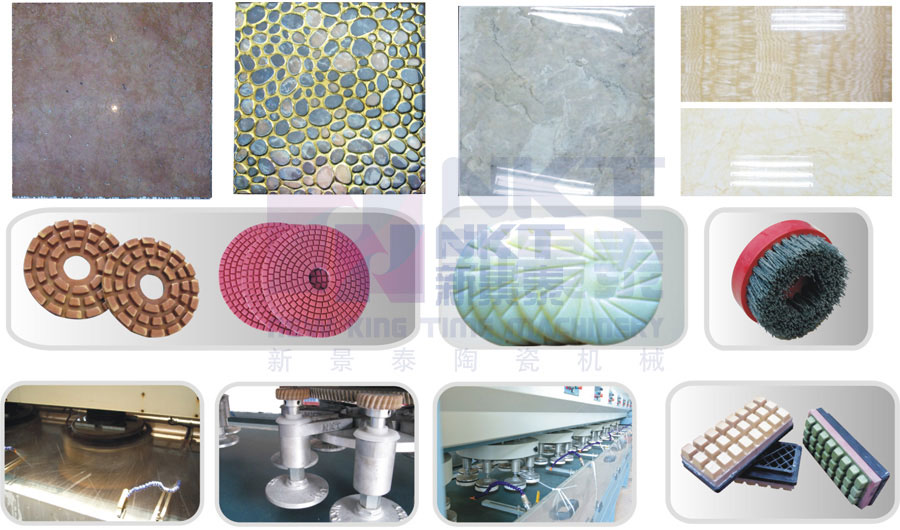

※ The half or fully polishing on the surface of the tiles, it has highly luminous, grinding evenly, so obtain the artistic effect which both retain the color of tile and make the local gloss. It is suitable FOR rustic tile, art border, uneven mould tile application.
※ It allows the matt polishing FOR anti-abrasion tiles, soluble-salt, rustic tile etc. Eliminate roughness surface, get the artistic effect which are NOT blink but glossy.
※ Waxing OR nanometer ON the half OR fully polishing tiles,make luminous over 90°from 50-60°before waxing, also get the best anti-dirty effect.
■ Model AND technical parameter
| Model | Tile Size | The quantity of polishing head | POWER | Overall DIMENSION (L×W×H) | Processing Speed | Weight |
|---|---|---|---|---|---|---|
| NJP-060 | 300-600mm | 8sets×8pcs=64pcs | 43KW | 8600×1580×2000mm | 2-8m/MIN | 12T |
| NJP-080 | 300-800mm | 8sets×8pcs=64pcs | 55KW | 8600×1580×2000mm | 2-8m/MIN | 12T |
|
|
|
FUNCTION
New King TIME Fully Glaze Polishing Line IS developed FROM our Years of research, whose design concept is based on the up-to-date technology in consideration of the features of glaze tiles production. By virtue of the compact structure as well as mature and stable characteristic, it is easy TO operate AND maintenance WITH hardly trouble.
Technical Feature
This line IS composed of Auto loading machine, Polishing machine, Cutting machine, Squaring & Chamfering machine, Nano waxing machine, Film sticking machine etc.
Application
Granito Tile, glaze tile, microcrystal tile
