Rustic Tile Equipment
Function/Technical Feature

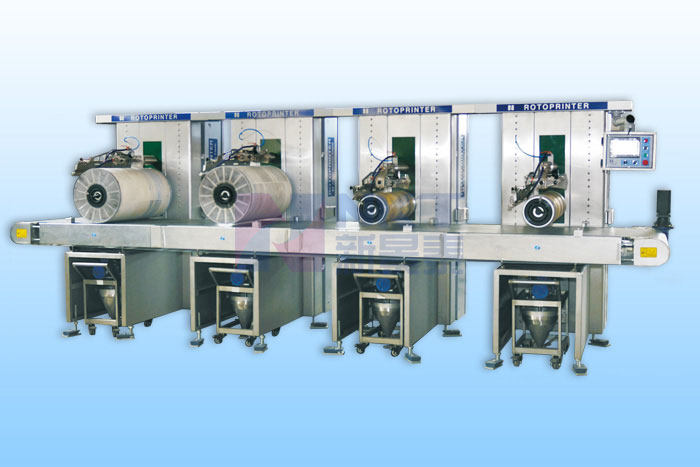

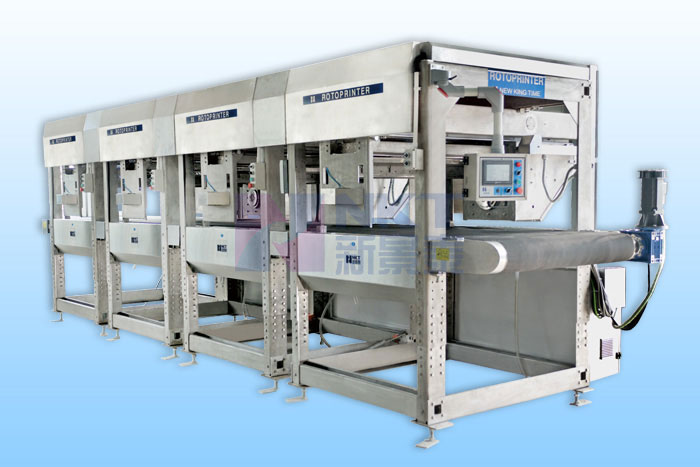

Multi-Roller printing machine is the latest decoration which designed following innovating principles. It’s equipped with PARKER servo motor and control system, so as to get fast speed and high precision, good stability and long service life. The outline structure and printing platform are made of stainless steel. Unique design of the double blade, whose angle and pressure can be adjusted independently, can reduce the color difference effectively. Because of the simplified operation system, it’s easy to operate and maintain.
Application
Wall tiles, floor tiles, rustic tile etc.
Model and technical parameter
| Model | Tile Size | Output | Power | Overall Dimension（L×W×H） | Weight | Roller Size |
|---|---|---|---|---|---|---|
| DTJ-066 | 660×1100mm | 0.2-0.1m/sec | 9kw | 5600×1600×1800mm | 2500kg | Φ230×723 / Φ458×823 |
| DTJ-088 | 880×1100mm | 0.2-0.1m/sec | 10kw | 5600×1800×1800mm | 2700kg | Φ230×723 / Φ458×823 / Φ458×1023 |
| DTJ-110 | 1100×1320mm | 0.2-0.7m/sec | 12kw | 7500×2400×2200mm | 3200kg | Φ458×823 / Φ458×1023 / Φ458×1323 |
|
|
|
|
|
|
|
|
|
|
